LMK-L Linear Bushing

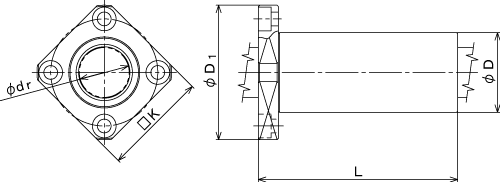

Drawing
Datasheet
| Model No. | Main dimensions | |||||||||
| Inscribed bore diameter | Outer diameter | Length | Flange | diameter | ||||||
| dr | Tolerance | D | Tolerance | L | Tolerance | D1 | Tolerance | K | ||
| Precision | High | Precision/High | ||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| LMK 6L | 6 | — | — | 12 | 0 | 35 | 0 | 28 | 0 | 22 |
| –0.013 | –0.2 | |||||||||
| LMK 8L | 8 | — | — | 15 | 0 | 45 | 0 | 32 | 0 | 25 |
| –0.013 | –0.2 | |||||||||
| LMK 10L | 10 | — | — | 19 | 0 | 55 | 0 | 39 | 0 | 30 |
| –0.016 | –0.2 | |||||||||
| LMK 12L | 12 | — | — | 21 | 0 | 57 | 0 | 42 | 0 | 32 |
| –0.016 | –0.2 | |||||||||
| LMK 13L | 13 | — | — | 23 | 0 | 61 | 0 | 43 | 0 | 34 |
| –0.016 | –0.2 | |||||||||
| LMK 16L | 16 | — | — | 28 | 0 | 70 | 0 | 48 | 0 | 37 |
| –0.016 | –0.2 | |||||||||
| LMK 20L | 20 | — | — | 32 | 0 | 80 | 0 | 54 | 0 | 42 |
| –0.019 | –0.2 | |||||||||
| LMK 25L | 25 | — | — | 40 | 0 | 112 | 0 | 62 | 0 | 50 |
| –0.019 | –0.2 | |||||||||
| LMK 30L | 30 | — | — | 45 | 0 | 123 | 0 | 74 | 0 | 58 |
| –0.019 | –0.2 | |||||||||
| LMK 35L | 35 | — | — | 52 | 0 | 135 | 0 | 82 | 0 | 64 |
| –0.022 | –0.2 | |||||||||
| LMK 40L | 40 | — | — | 60 | 0 | 154 | 0 | 96 | 0 | 75 |
| –0.022 | –0.3 | |||||||||
| LMK 50L | 50 | — | — | 80 | 0 | 192 | 0 | 116 | 0 | 92 |
| –0.022 | –0.3 | |||||||||
| LMK 60L | 60 | — | — | 90 | 0 -0.025 | 211 | 0 | 134 | 0 -0.3 | 106 |
